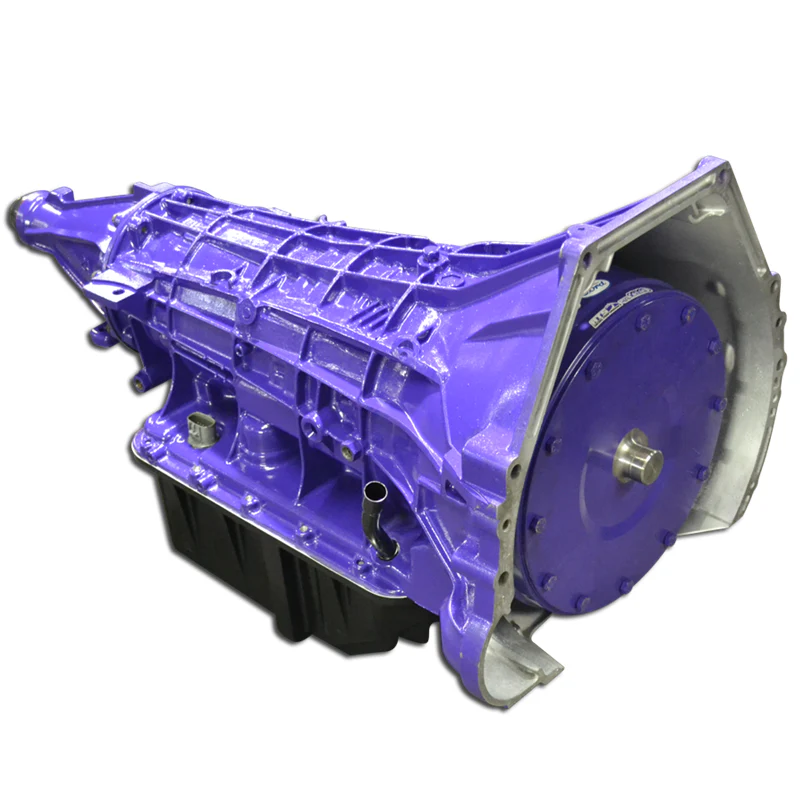

The factory Ford 4R100 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations. These weaknesses arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. The result is a solid transmission setup to meet the demands of your Ford Super Duty. Ensure that the power of your Powerstroke is getting to the ground with an ATS Transmission Package.

By increasing the line pressure, clutch pack surface area and modifying the valve body, the 4R100 becomes a consistent, responsive and dependable transmission. The Stage 3 includes a billet 300M input shaft. As power increases over 400hp, or considerable weight will be towed, the input shaft takes the brunt of it. The ATS input shaft is designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use.

Beginning on the Stage 3, ATS includes a Co-Pilot Transmission Lock-up Controller. This controller allows the user to lock the converter based on vehicle speed. The result is more power to the ground at a lower speed, thus improving acceleration, lowering transmission temperatures and helping fuel economy. The Co-Pilot will also synchronize torque converter lock-up with an exhaust brake, for added braking force. The ATS Stage 3 4R100 is designed for trucks that see daily driving and heavy towing duties, aggressive tuning, and a modified turbo and/or injectors.

SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.

ATS 4R100 Transmission Package Stage Build Comparison

	Stage 1	Stage 2	Stage 3	Stage 4	Stage 5	Stage 6
Horsepower Rating	400	500	600	700	800	1000
ATS 4R100 Transmission	✅	✅	✅	✅	✅	✅
5-Star Torque Converter	✅	✅	✅	✅	✅	✅
Deep Pan Trans Pan	✅	✅	✅	✅	✅	✅
Billet Input Shaft		✅	✅	✅	✅	✅
Co-Pilot® Controller			✅	✅	✅	✅
Billet Flex Plate				✅	✅	✅
Billet Intermediate Shaft					✅	✅
Billet Output Shaft						✅
